Correlation ultrasonic heat-water meter ELKORA S-25

The universal measuring device is intended for measuring the flow and quantity of technical and drinking water, heavily polluted liquids (feces, rainwater), and it also provides commercial and technological accounting of heat energy in water heating systems.

Features and benefits

  • Wide flow measurement range.
  • There are no moving parts for a long service life.
  • Constant relative measurement error over the entire range.
  • There are 2 flow, 2 pressure and 3 temperature measurement channels.
  • Three-year warranty with post-warranty service.

Technical parameters

  • The water meter complies with OIML R 49 accuracy class 2.
  • The flow measurement range is given in the table.
  • Temperature measurement range 0°C – 150°C.
  • Power supply: 100V – 220V, 50Hz – 60Hz.
  • Output signals: 2 current, frequency and pulse, interface RS 232, interface Centronics.
  • Connection: slotted DN 300 – DN 2000, flanged DN 50 – DN 250.
DNQ min m3/hQ nom m3/hQ max m3/h
500,3001560
650,50025100
800,80040160
1001,2060240
1252,00100400
1503,00150600
2005,002501 000
2508,004001 600
30012,06002 400
40020,01 0004 000
50030,01 5006 000
60050,02 50010 000
80080,04 00016 000
10001206 00024 000
120020010 00040 000
160032016 00064 000
180040020 00080 000
200048020 00096 000

Dimenssions

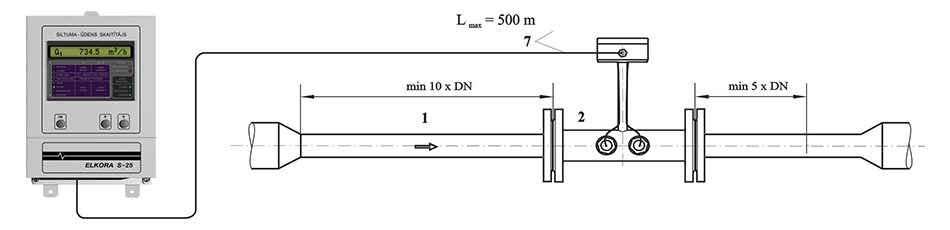

Installation and connection

The spatial arrangement of the flow sensor can be both horizontal and vertical.

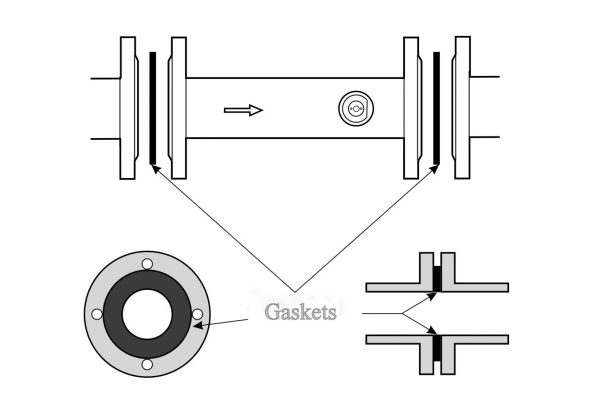

The gaskets must not protrude into the measuring part.
