Steam and air meter ELKORA S-23

The measuring device is intended for accurate commercial and technological accounting of the consumed and developed steam heat energy in heat supply systems, as well as for measuring the flow and quantity of compressed air.

Features and benefits

Wide flow measurement range.
There are no moving parts for a long service life.
Constant relative measurement error over the entire range.

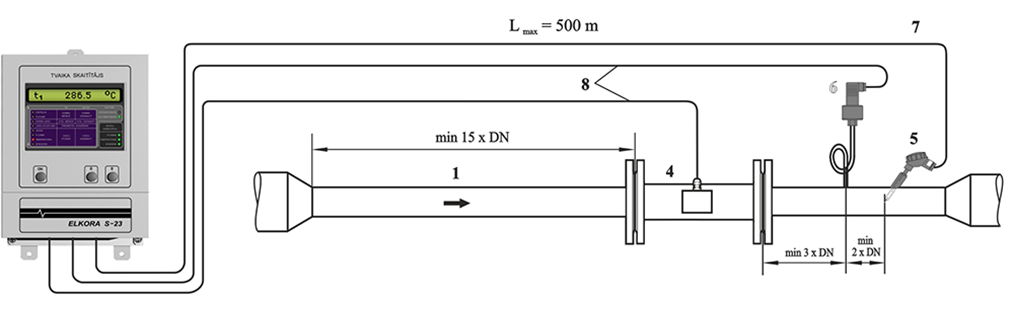

1 flow sensor, 1 pressure sensor and 1-2 (depending on the order) temperature sensors can be connected to one electronic unit.
Three-year warranty with post-warranty service.

Technical parameters

The heat meter complies with EN 1434 accuracy class 2.
The flow measurement range is given in the table.
Temperature measurement range 0°C – 300°C.
Power supply: 100V – 240V, 50Hz – 60Hz.
Output signals: current, frequency and pulse, interface RS 232, interface Centronics.

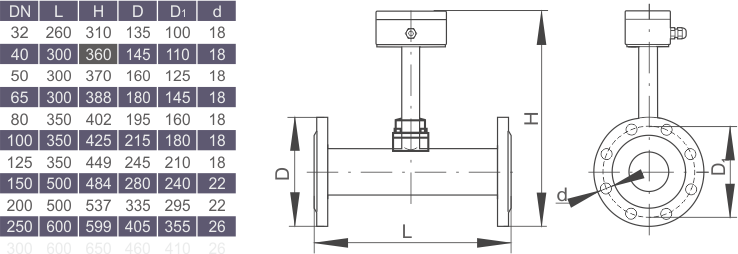

Connection: flange DN 32 – DN 300.

Data storage options

ELKORA meters allow the following values of current and integral parameters to be stored in the memory:

+Hourly average and daily average (archive 768 hours and 64 days);

+Amount per day and amount per month (archive 64 days and 32 months);

+Shutdown time per day and month (archive 64 days and 32 months).

DN	Q min m³/h	Q max m³/h
32	15	250
40	20	400
50	30	600
65	50	1 000
80	70	1 400
100	100	2 000
125	160	3 200
150	250	5 000
200	450	9 000
250	700	14 000
300	1 000	20 000
